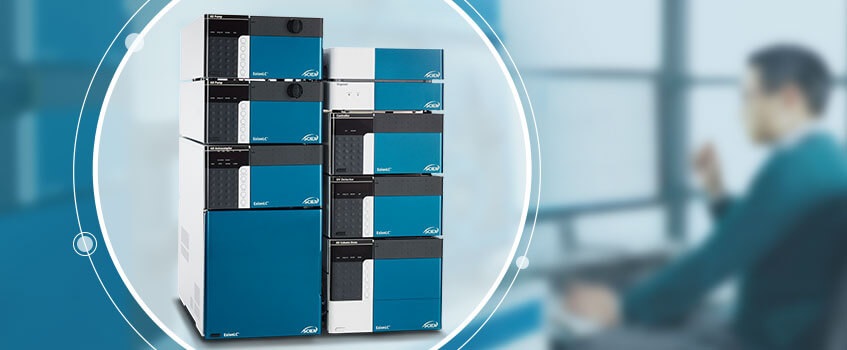

ExionLC™ Series UHPLC

Analytical HPLC Solutions for LC-MS

Designed for seamless integration with SCIEX mass spectrometers, ExionLC analytical HPLC and UHPLC systems provide the speed, sensitivity, resolution, and reliability that you need for routine or complex LC-MS analysis.

Pick Your Model

ExionLC AC:
An affordable system that can handle a wide range of applications. With both HPLC and UHPLC capabilities the ExionLC AC is a reliable robust solution for routine analysis.

ExionLC AD (shown below):
The system combines near zero carryover, full UHPLC capabilities to provide world-class performance under the most demanding analytical conditions.

ExionLC
Key Features

Wide Range of Flow Rates

0.0001 to 10.0 mL/min

HPLC/ UHPLC Performance

9,500 to 18,850 PSI

Ultralow Carryover

Innovative flow through design, ability to choose multiple rinse solutions

High Throughput Capability

Up to 768 samples with 384 well MTP (expandable to 12 plates/trays with rack changer option)

Flexible Column Oven Choices

Choice of compact two-column oven, or six-column.

Optional Accessories

Multiplate autosampler (AD only), rack changer, and optical detectors

LC Solutions Tailored to Meet Your Needs

Your lab has unique analytical requirements and our goal is to provide LC-MS solutions tailored to meet your needs. The ExionLC™ Series of robust and reliable HPLC/UHPLC systems offers a wide range of performance and flexibility.

The Power of UHPLC/HPLC Performance

Backed by over 40 years of trusted LC-MS innovation and service, the ExionLC provides you with the versatility, reproducibility and robustness to tackle the toughest applications, from method development to routine analysis, 24/7.

ExionLC AD

Quantitate with Confidence

ExionLC AD combines accurate injection volumes with near zero carryover to make quantitation a breeze.

Unrivaled Reproducibility

Flow rate precision < 0.06% and accuracy of less than 2% gives you the analytical accuracy and precision you need day in and day out.

No Fuss Upgrades

Expand your capabilities with a wide range of options that allow you to simplify method development, automated sample prep or increase throughput.

ExionLC AC

More Performance, Less Cost

The ExionLC AC delivers with its affordable price and HPLC /UHPLC separation capabilities.

Better Results, Faster

Reproducible retention times combined with sensitive, accurate quantitation gives you results you can trust.

Ultimate Flexibility

ExionLC can support multiple components, and configurations to meet the changing demands of your laboratory.

See the Presentation
Key Features ExionLC AD ExionLC AC
UHPLC/ HPLC Performance 18,500 PSI (1300 bar) 9,500 PSI (660 bar)
Ultralow Carryover 0.0015% maximum < 0.005%
Cooled Autosampler Direct cooling, 4 to 40°C
(under specified conditions)
Direct cooling, 4 to 40°C
(under specified conditions)
Temperature Controlled Column Oven Room Temp. +5° C to 150°C, 2 column capacity
(AC column oven also compatible)
Room Temp. -10° C to 85°C, 6 column capacity
(AD column oven also compatible)
Wide pH Range 1-9 (standard)
1-14 (optional)
1-14

Pick Your Application

Pharma and Biopharma

Make confident decisions faster, resulting in more efficacious, safer therapeutics.

Food and Beverage Testing

Solutions to test and protect our global food and beverage supply.

Forensics Testing

Complete forensic drug testing solutions to help you uphold result integrity.

Life Science Research

Accelerate the pace of your research to identify key genes, proteins, lipids and metabolites.

Customize Your ExionLC

Modular components allow you to update your system to keep pace with changing requirements. Add a column switching valve, two additional pumps and do on-line SPE. Add a PAL autosampler for automatic sample dilution or on-line microSPE.

Solvent Selector Valve

Allows you to select between two solvents per channel from up to 3 different pumps.

UV Detector

Time programmable wavelength switching allows detection sensitivity and selectivity.

Rack Changer

Up to 12 additional cooled sample trays or vial racks to the AC or AD system.

PDA Detector

Excellent option for ID, quantitation, and purity analyses at trace levels.

Multiplate Autosampler

Expands capacity with 324 x 1.5 mL vials, or 6 microtiter plates in 96 or 384 formats.

PAL Autosampler

Increase productivity by adding a PAL RSI or PAL RTC Autosampler.
