How to assign component specific limits, comments, groups in SCIEX OS Analytics?


Date: 04/24/2024
Categories: Academia Omics , ProteinPilot Software , Pharma CRO

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

In a SCIEX OS qmethod component specific values (or text) can be stored.
In actual versions you can find a component column in the quantitation method - but you have to make it visible first:

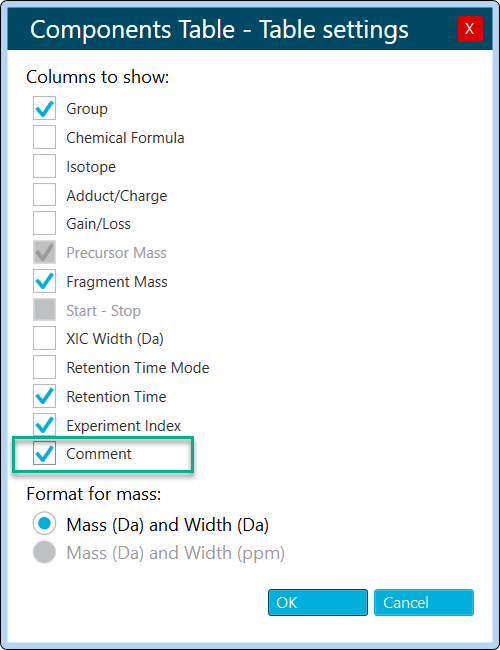

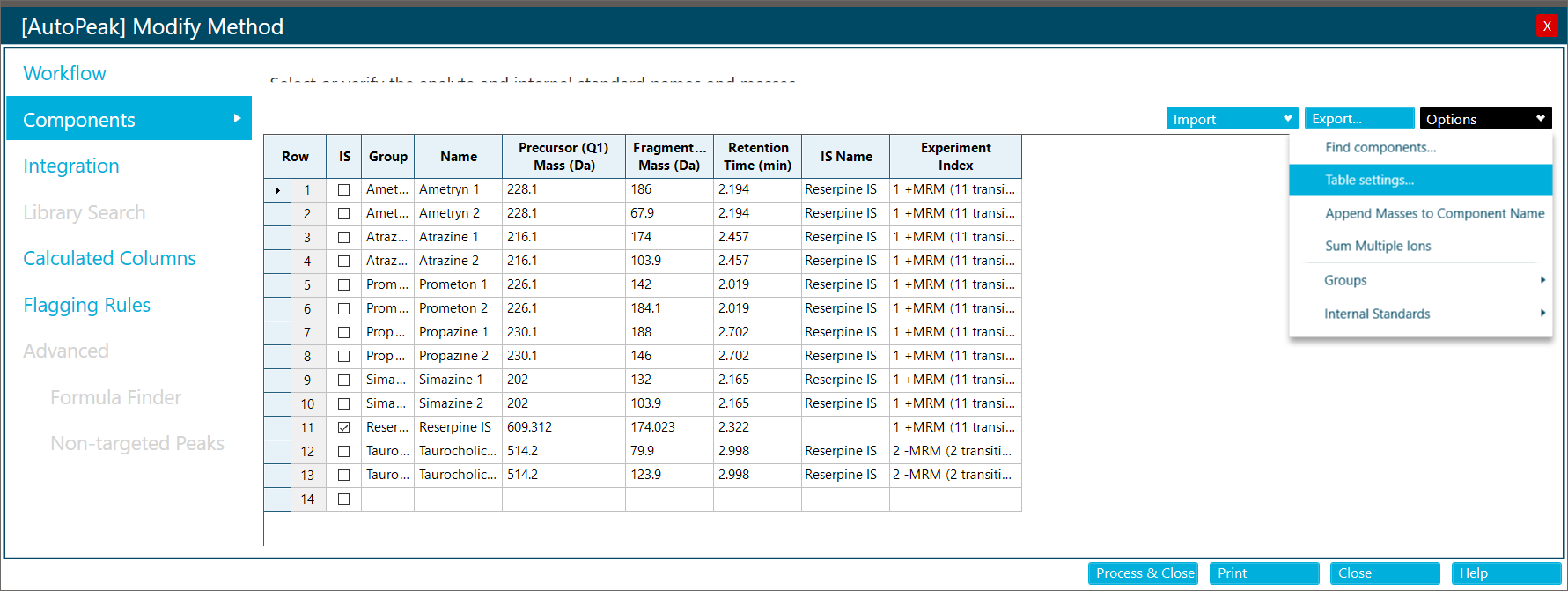

Open the method, select <Components> in the menue on the left hand side. In <Options> open the <Table Settings> and check <Comment>:

A screenshot of a computer  Description automatically generated
A screenshot of a computer  Description automatically generated

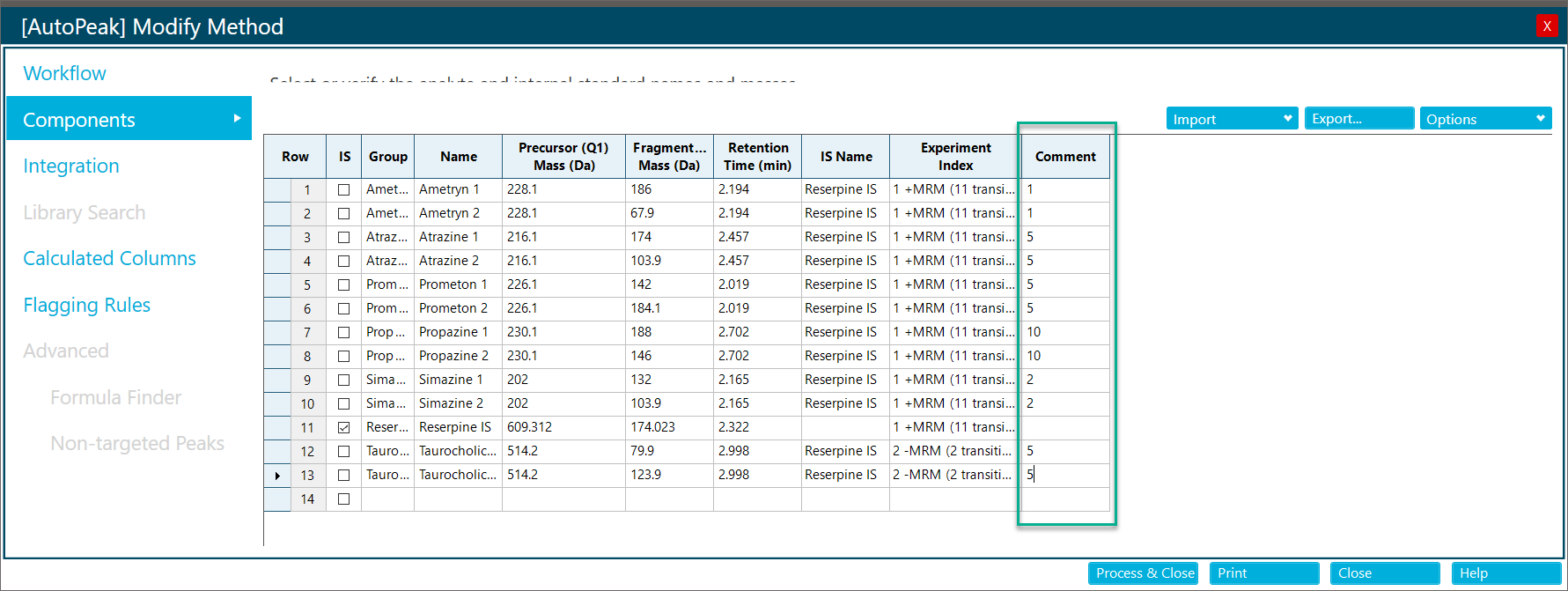

An additional column will be visible in the components table and can be filled:
A screenshot of a computer  Description automatically generated

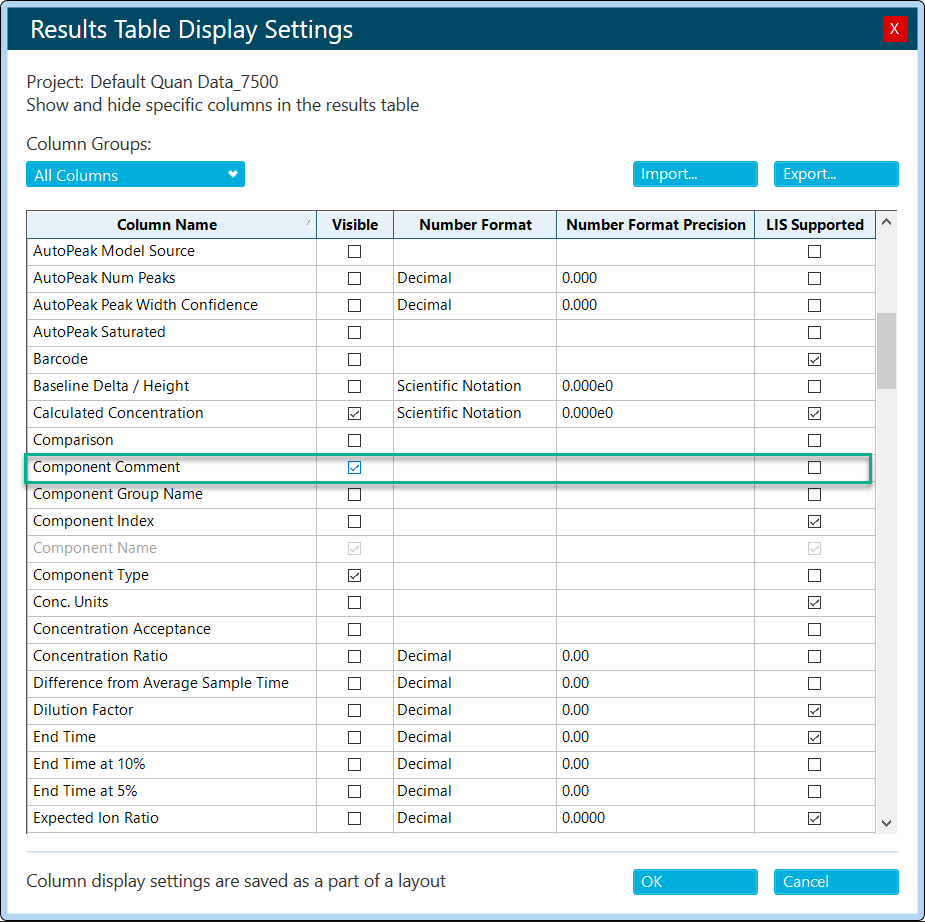

These values will be populated in the results table column [Component Comment].
A screenshot of a computer  Description automatically generated
This can be done vice versa, too: new/changed values in the [Component Column] in the results table will result in an updated quantitation method.
In earlier versions (prior to v2.2) you have to use this vice versa approach, as the <Comment> column in the component table of the quantitation method is not available yet.
