How to use Mixed Mode in SCIEX OS


Date: 02/07/2023
Categories: SCIEX OS

0 Votes
   Print    Rate Article:

For research use only. Not for use in diagnostic procedures.


Answer

In SCIEX OS you can use two different Security Modes: Integrated Mode or Mixed Mode

Integrated Mode: If the user who is currently logged on to Windows is defined as a user in the
software, then that user has access to SCIEX OS.

Mixed Mode: Users log on to Windows and the software separately. The credentials used to log
on to Windows need not be the same as the credentials used to log on to . Use this mode to
allow a group of users to log on to Windows with the same set of credentials, but require each
user to log on to the software with unique credentials. These unique credentials can be assigned
to a specified role in the same way as in Integrated mode.
If Mixed mode is selected, then the Screen Lock and Auto Logoff features are available for use.

For more details, please check the Laboratory Directors Guide of SCIEX OS.

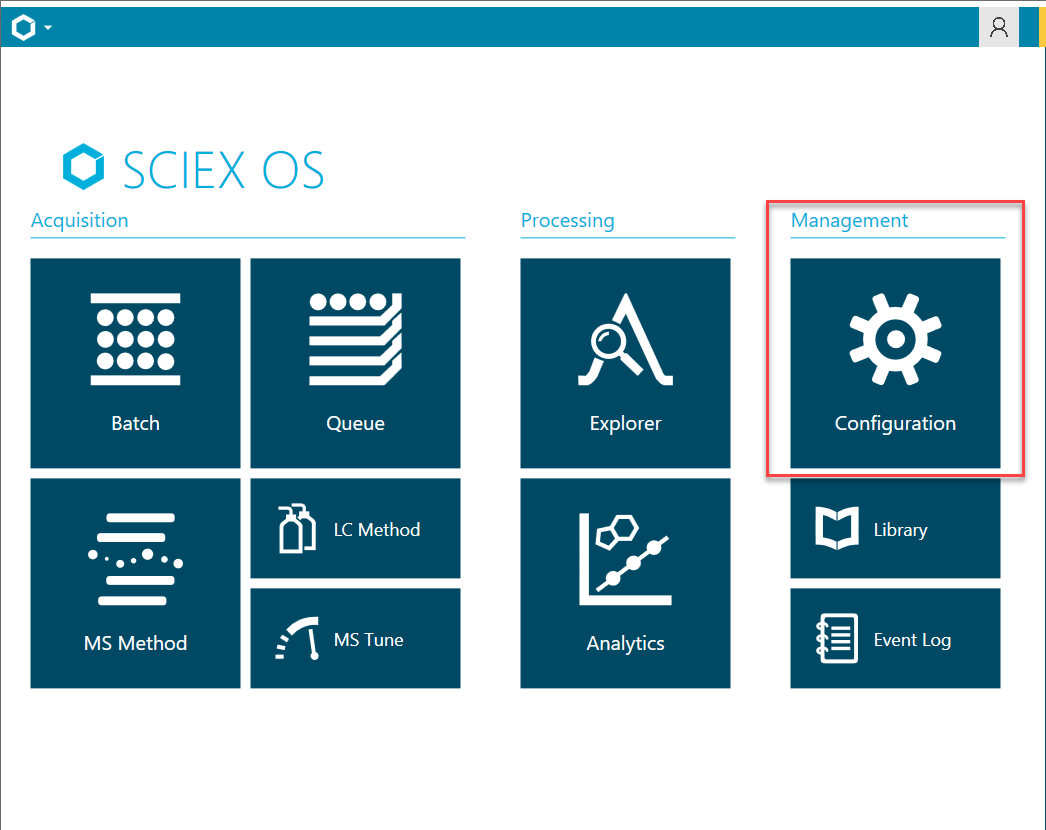

Where to find the Security Settings? Please select the Configuration tab.

Graphical user interface, application  Description automatically generated

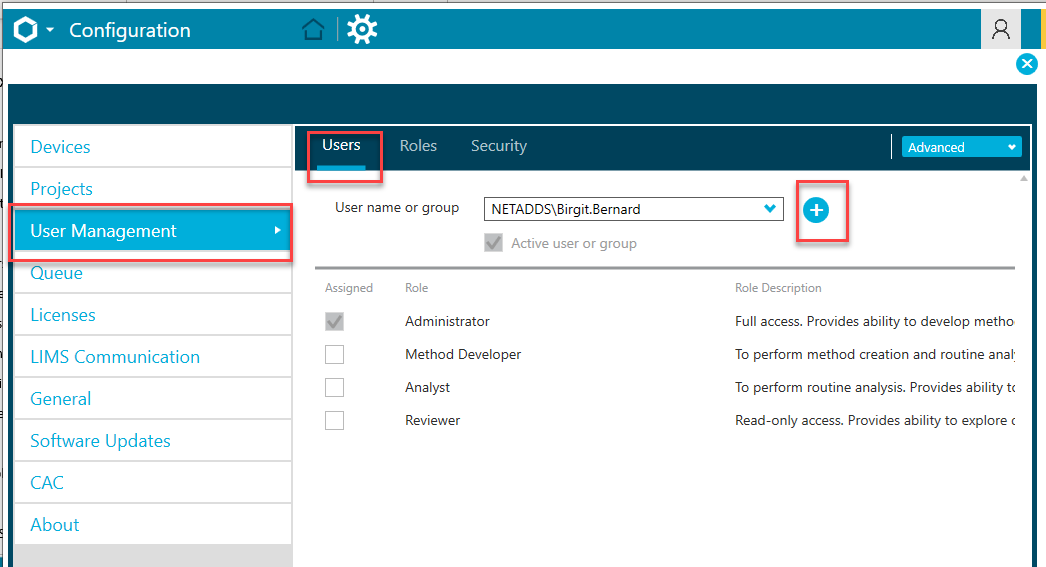

Select the User Management and add with the blue “+” all users, you like to have access to SCIEX OS.

Graphical user interface, application, website  Description automatically generated

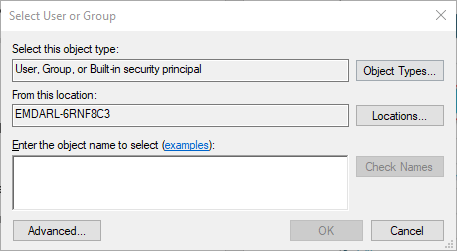

You can add specific local or Domain Users, if PC has access to Network, or User Groups.
Note: SCIEX OS has no own User Database. It is using Windows Users names and Password afterwards for login.

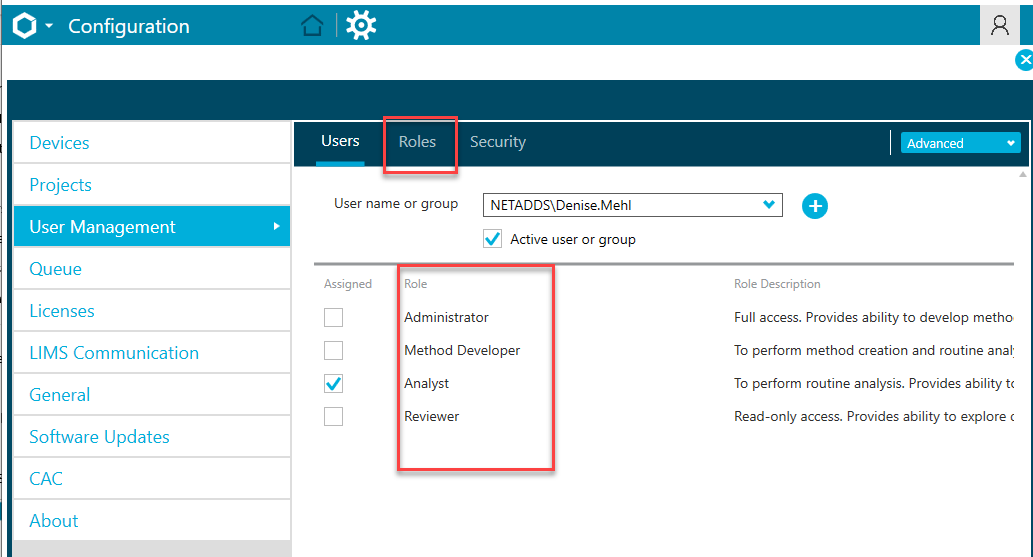

Give the added Users the needed Security Role. There are some pre-defined Roles in SCIEX OS. But you also can add more Roles and modify the permissions.

Graphical user interface, application  Description automatically generated

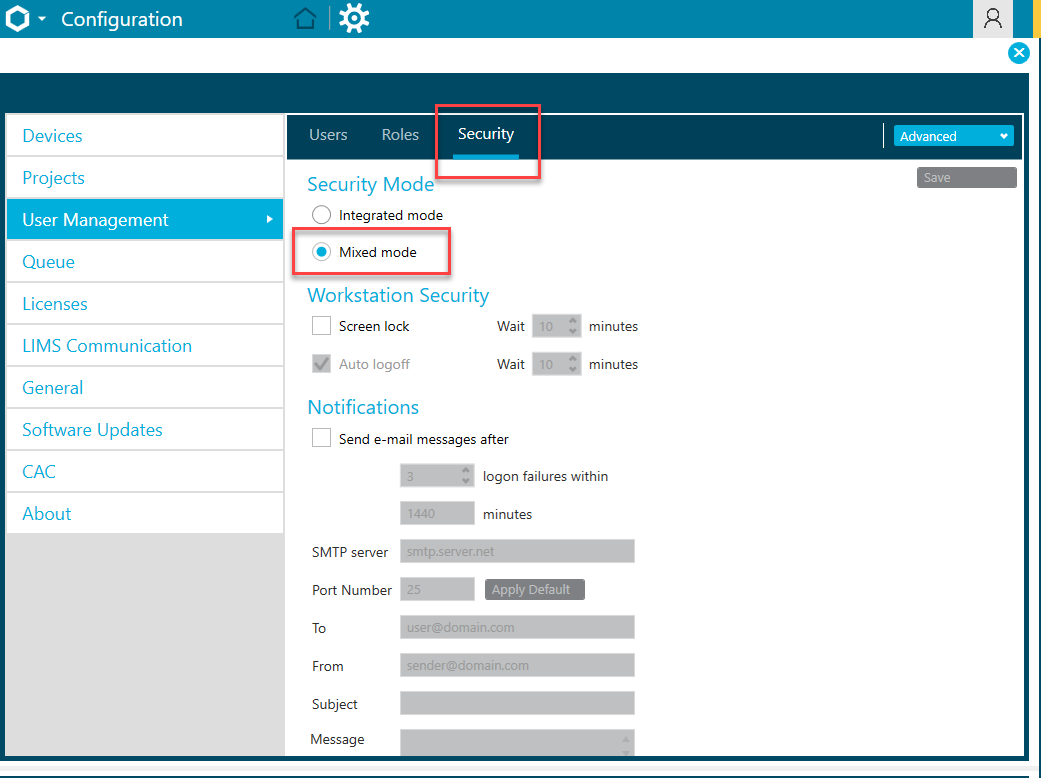

If all users are added, select the Security Tab.

Graphical user interface, website  Description automatically generated

Here in the Example Mixed Mode is selected.
To take any changes into account, you need to restart the SCIEX OS Software.
